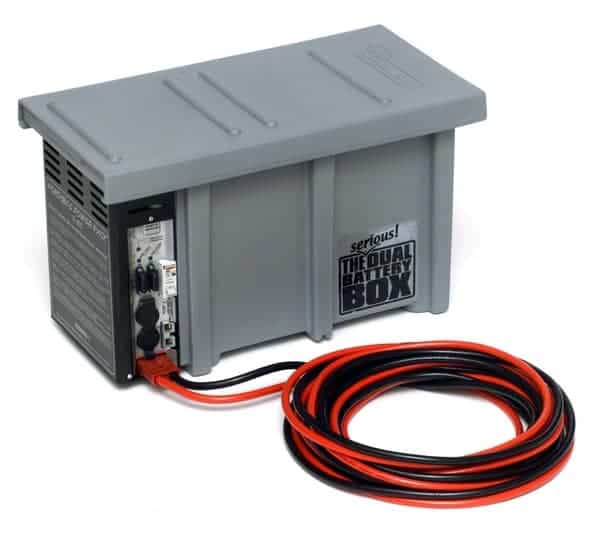

National Luna Portable Power Pack – Dual Battery System Discount Footaction

• Slide-Lock Lid
• Fully fused outputs
• Very simple to install
• Accurate battery monitors
• Snap-On input power coupler
• Cables and power fuse supplied
• Accepts any standard automotive battery
• Fully automatic split-charge isolator included.

• Simple installation
• Removable / Portable design
• Fully automatic split-charge isolator
• Built-in battery monitor and input voltage monitor
• Remote battery monitor port (for remote dual battery controller)
• Slide-lock lid
• Bolt-down / Strap-down design
• Electronics isolated from battery compartment
• Can accommodate standard automotive battery types
• 7-metre heavy-duty cable supplied with attached coupler
• Fuse-protected plugs and connections
• Battery hold-down bracket supplied
• In-line fuse supplied
• Additional battery terminals and hardware supplied
• Additional cables, hardware and monitors available separately

• Physical size 500mm (l) x 260mm (w) x 300mm (h)
• Weight 5.2Kg (excluding battery and cables)
• Power supply 8Vdc – 15Vdc (display range: 11.4V – 14.2V)
• Switched current 85 amp (continuous) , 400 amp (peak)
• Cable 7-metre red and black (14m total) with connector
• Connectors “Hella” style output (15A fused)
• “Cigarette lighter” output (15A fused)
• 50 amp input-output coupler (60A fused)
• 50 amp charge input (split-charge input)
• Remote port Suits removable data cable for Dual Battery Controller
• Battery monitors 14-stage auxiliary battery monitor ( 11.4V – 14.2V)
• 7-stage input voltage monitor (12.6V – 14.2V)
• Power consumption
• 60mA avg (standby)
• 780mA max (solenoid engaged)

Battery, National Luna
